GT NANO PRO

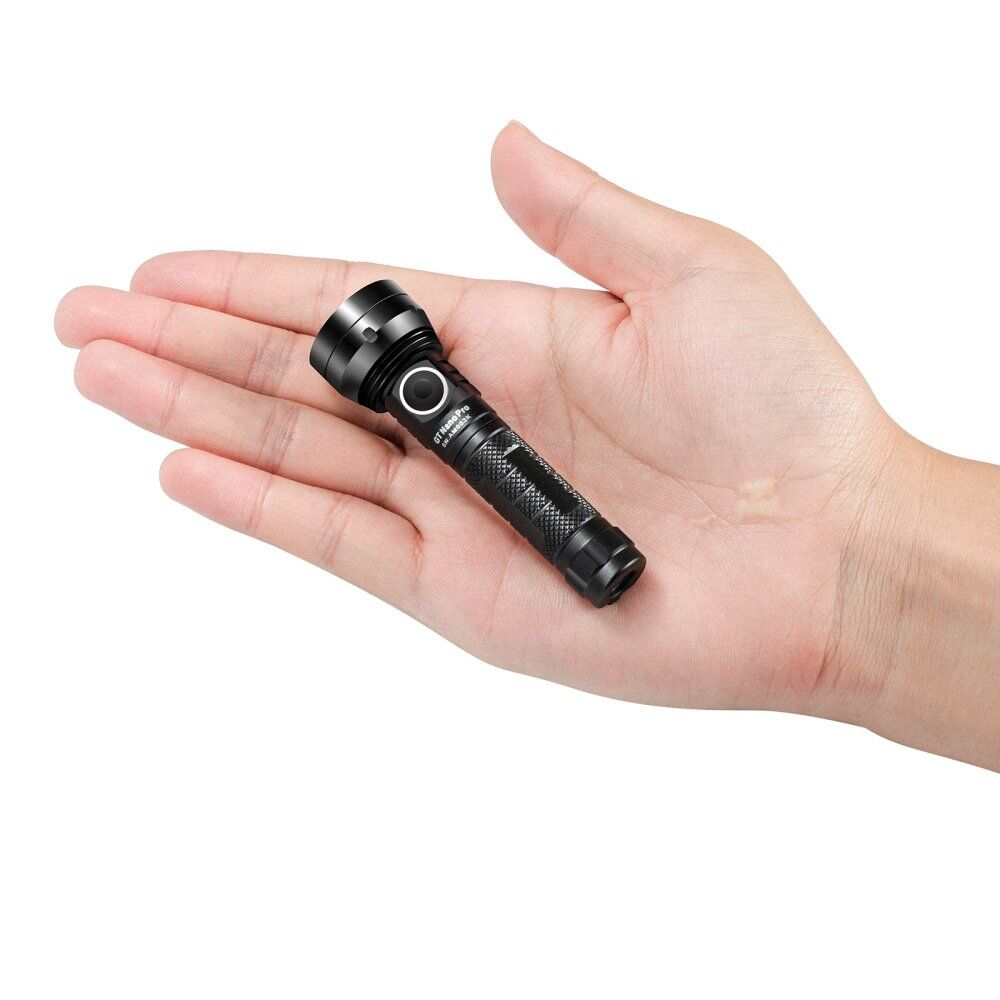

GT Nano Pro is a super tiny yet ultra bright keychain EDC flashlight. With a length of 79mm and 30g in weight, this tiny flashlight bursts into a max up to 1620 lumens output and a 165 meters beam distance. Tail standing ability, IPX-8 waterproof, GT Nano Pro is a must-have for your EDC collection.

Battery

10440

Beam Rang

1-200m

LED

Nichia, XP-G3, SST20, XP-L HI

Lumens Range

0-500 Lumens

Material

Aluminum

Weight

1-60g

Features

  • Emitter: Three Cree XP-L HI, Nichia 219ct, OR Luminus SST20 LEDs for options
  • Flux: ~1620 lm
  • Throw: ~165 m & ~6975Kcd
  • User interface: Stepped with 5 modes
  • Battery: One button-top 10440 Li-ion, or three AAA batteries with the extra extension tube. The cell and extension tube are excluded.
  • Optic: Standard TIR optic
  • Body: Aluminum with Type III HA anodizing
  • Button: Tactile with back-lit rubber boot
  • Ingress rating: Equivalent to IPX-8, underwater 2m
  • Weight: Approximately 30g without cells (aluminum)
  • Dimensions: 24*14*79 mm (head Ø*tube Ø*length)

Specification

ANSI/NEMA FL1EcoLowMedHighTurbo
Output104400.5 Lumens70 Lumens430 Lumens1000 Lumens1620 Lumens
AAA NiMH0.5 Lumens65 Lumens280 Lumens600 Lumens1100 Lumens
AAA Alkaline0.5 Lumens70 Lumens300 Lumens650 Lumens1000 Lumens
Runtime1044064h3h35min90S+32min90S+28min
AAA NiMH8 days10h2h4min+45min75S+40min
AAA Alkaline8 days10h2h10min+40min30S+45min
Distance (Max)10440: 165m / AAA Ni-MH: 130m / AAA Alkaline: 127m
Intensity (Max)10440: 6795cd / AAA Ni-MH: 4230cd / AAA Alkaline: 4050cd
Impact Resistant1.5m
WaterproofIP68, underwater 2m
Light Source3 X Cree XPL HI LED/ Nichia 219CT LED/ Luminus SST20 LED
Battery1 X 10440 Li-ion / 3 X AAA (A long tube is required, the tube and battery are sold separately.)
Power13.5W (Max)
Size79*24*14mm
Net Weight30g (battery excluded)
Multi-ProtectionsAnti-reverse protection, Over-heat protection, Low voltage protection

Notice: The above-approximated parameters are lab-tested and may vary between the difference in battery and environment. The runtime on High and Turbo are accumulated due to over-heat settings.

Download

GT_Nano_Pro_V2_Manual_0823
