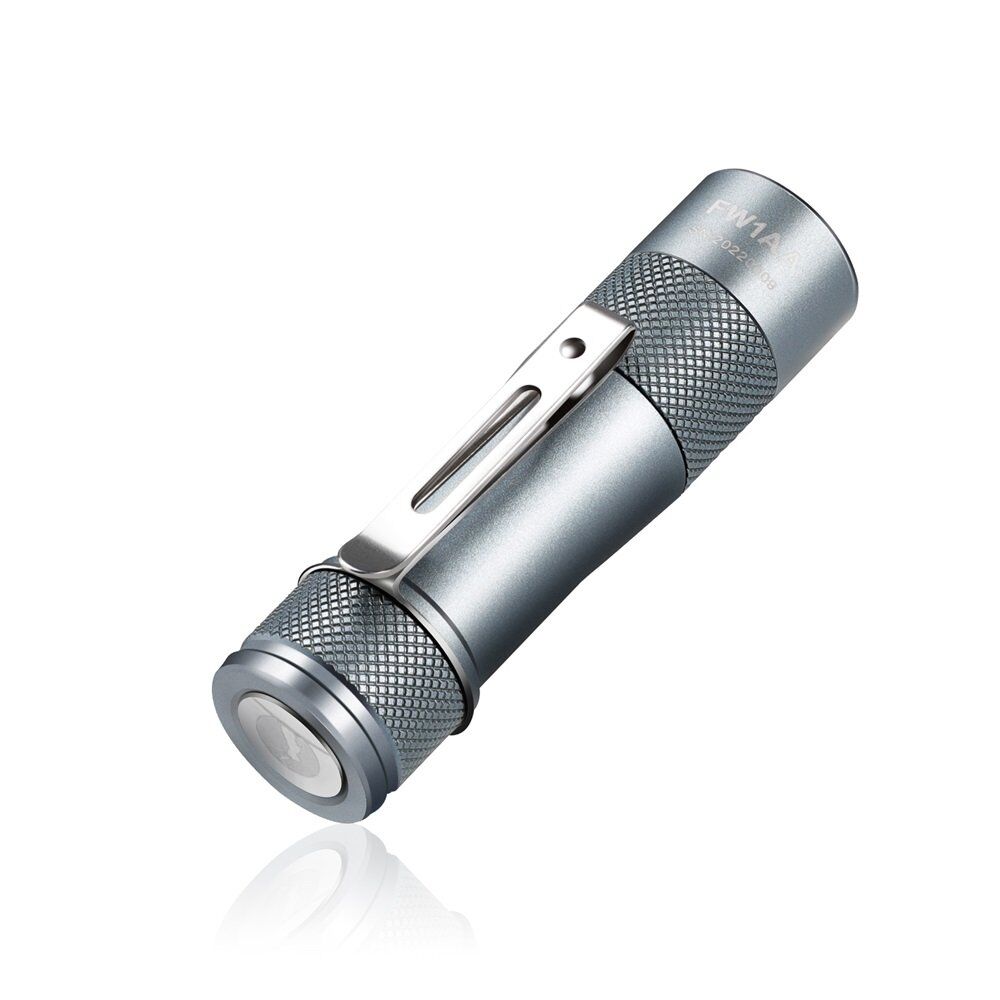

FW1AA
FW1AA is the single emitter variant of the hot sale model FWAA. By adopting an OSRAM NM1 LED, it emits a max up to 700 lumens output and 330 meters throw distance by using a single 14500 Li-ion cell. Anduril2 UI, rear E-switch, tail standing ability, stainless dual-position steel pocket clip, IPX-8 waterproof, FW1AA is an ideal choice for EDC flashlight.
| Battery | 14500 |
|---|---|
| Beam Rang | 201-500m |
| LED | OSRAM |
| Lumens Range | 501-1000 Lumens |
| Material | Aluminum |
| Weight | 1-60g |
Features
LED: Osram KW CSLNM1.TG LED 6500K, Nichia 219CT LED 4000K, or Osram SST20 LED 4000K
Output: 0.5LM~700LM (Max, CW),
Runtime: 489H (0.5LM), 2M+1H30M (700LM)
Intensity: ~270cd (Max, CW), 11250cd (Max, NW)
Distance: ANSI~330M (Max, CW), 210m (Max, NW)
Switch: Electronic tail switch
Battery: One high drain and 14500 Li-ion cell. Max length 51mm. The cell is not included.
User interfaces: Anduril2 UI, by default the FW1AA is set to use Simple and SMOOTH RAMPING. Advanced mode is also provided.

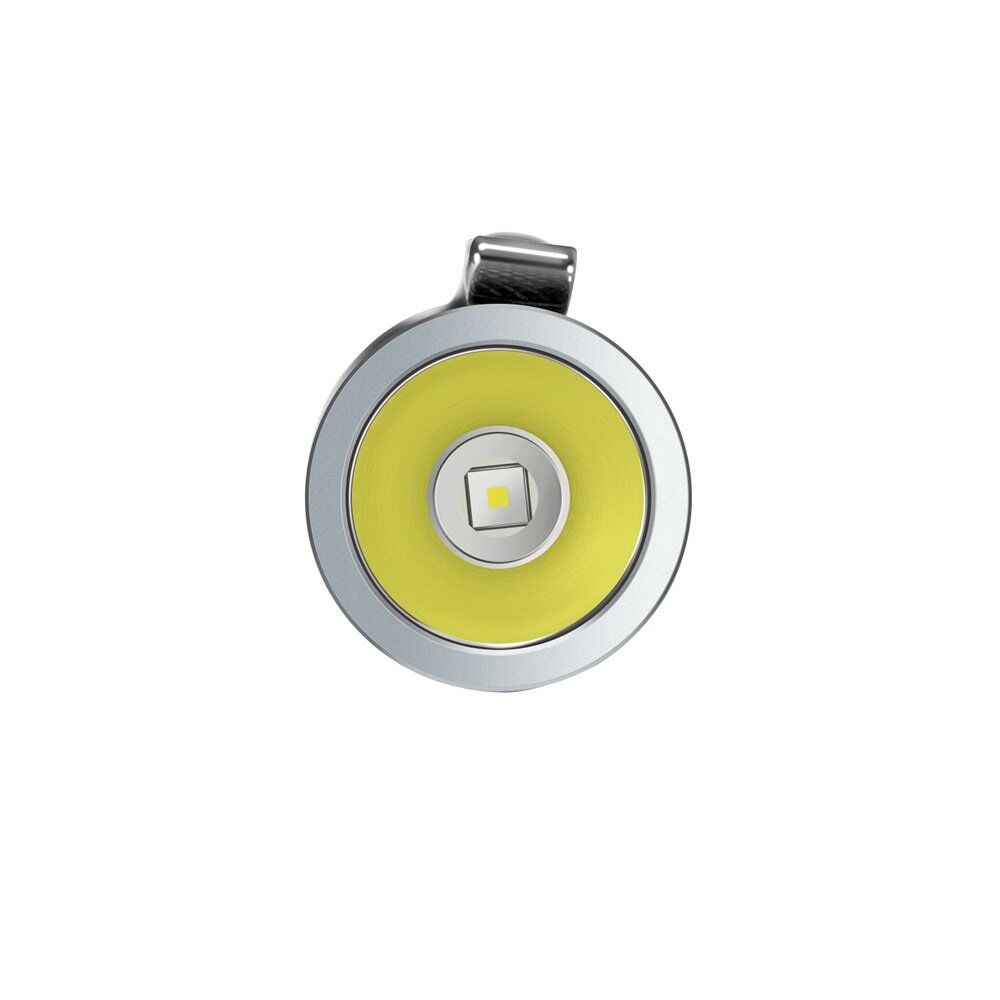

Reflector: Aluminum smooth reflector
Body: Aluminum alloy with hard-coat anodizing
Ingress rating: Equivalent to IPX8
Weight: Approximately 32.5 g (aluminum) without cells
Size: 20.5 mm Ø head x 77.2 mm length
Specification
| Moonlight | Low | High | Turbo | |
| Output | 0.5 LM | 5LM | 500 LM | 700 LM |
| Runtime | 20d 9h | 185h | 5m +1h 8m | 2m + 1h 30m |
| Distance | 330m (Max) | |||
| Intensity | 27000cd (Max) | |||
| Impact Resistant | 1.5m | |||
| Waterproof | IP68, underwater 2m | |||
| Light source | OSRAM NM1 LED, Nichia 219C LED, or Luminus SST20 LED | |||
| Power | 9.5W | |||
| Battery | 1 X 14500 Li-ion, unprotected, max length 50.5mm | |||
| Size | 20.5 X 77.2mm | |||
| Nei Weight | 32.5g (battery excluded) | |||
Notice: The above-approximated parameters are lab-tested and may vary between the difference in battery and environment. The runtime on High and Turbo are accumulated due to over-heat settings.
