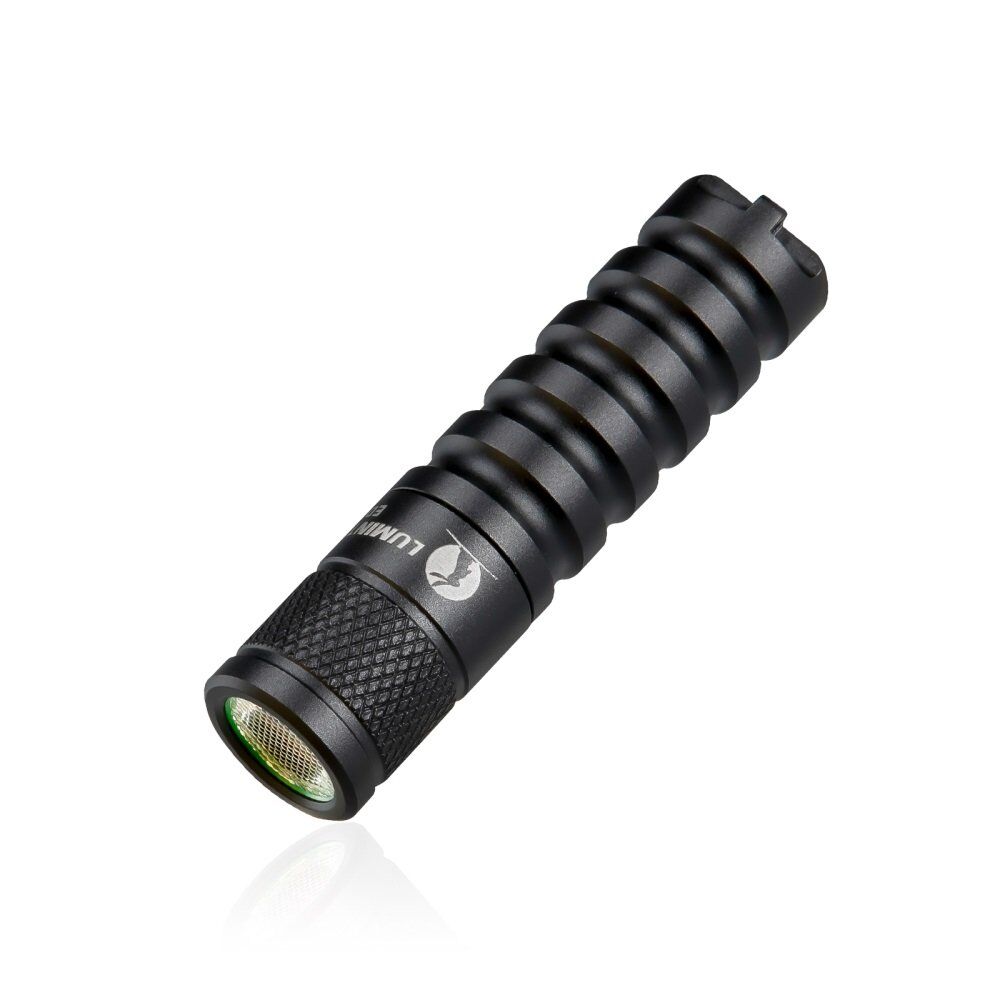

EDC15

EDC15 is a compact and portable EDC flashlight with a max output of up to 760 lumens. With a length of 73.5mm, compatible with both 14500 Li-ion and AA (Alkaline and Ni-MH) cell, twisty operation, IP68 rated dustproof and waterproof protection, EDC15 is an ideal choice for EDC, etc.

Battery

14500, AA

Beam Rang

1-200m

LED

OSRAM

Lumens Range

501-1000 Lumens

Material

Aluminum

Weight

1-60g

Features

  • Utilizes OSRAM GW PUSRA1.PM LED with a lifespan of 50,000 hours
  • 4 modes plus Strobe with a max 760 lumens output and an up to 80 hours runtime
  • Runs on one 14500 Li-ion or always available AA Ni-MH or Alkaline battery
  • Compact and light-weight design, easy to carry
  • Bead surface optical lens for soft and balance beam
  • Reverse polarity protection guards against damage from improper battery installation
  • Twisty switch makes it easy to access all modes
  • Capable of standing up on a flat surface to serve as a candle
  • Make of aircraft-grade aluminum alloy with wear-resistance Type III HA finished
  • IP68 rated protection, impact resistance to 1.5 meters
  • Size: 73.5*18.5mm, W.: 20.5g (excluding battery)

Specification

ANSI/NEMA FL1LowMedHighTurboStrobe
Output145008 LM130 LM450 LM760 LM450 LM
Alkaline2 LM20 LM150 LM280 LM150 LM
Ni-MH2 LM20 LM130 LM320 LM130 LM
Runtime1450050h4h 10m58m5m+1h 5min/
Alkaline65h9h 37m50m20m/
Ni-MH80h16h2h 28m1h 5m/
Distance70m (Max)
Intensity1235cd (Max)
Impact Resistant1.5m
WaterproofIP68 (underwater 2m)
Light sourceOSRAM LED
Power8W
Battery1 X 14500/ AA
Size73.5*18.5mm
Nei Weight20.5g (battery excluded)

Notice: The above-approximated parameters are lab-tested and they may vary due to the difference between the battery and environment.
