AD01

Equipped with a specially designed smooth optic lens, Lumintop AD01 delivers a max 650 meters distance from a single 18650 Li-ion and provides a 1200 lumens max output on Turbo. It allows more battery options by compatibility with 18650 Li-ion, D cell, and the easy-get AA cells. Compact in size, IP68-rated waterproof and dustproof protection, AD01 is an ideal choice for outdoor, hiking, camping, etc. lighting devices.











Battery

AA, D, 18650

Beam Rang

501-1000m

LED

OSRAM

Lumens Range

1001-5000 Lumens

Material

Aluminum

Weight

>200g

Features

  • OSRAM LED with a lifespan of up to 50000 hours
  • 5 modes with max 1200 lumens output, extra Strobe, SOS, and Beacon are available
  • Max 650 meters far-reaching distance

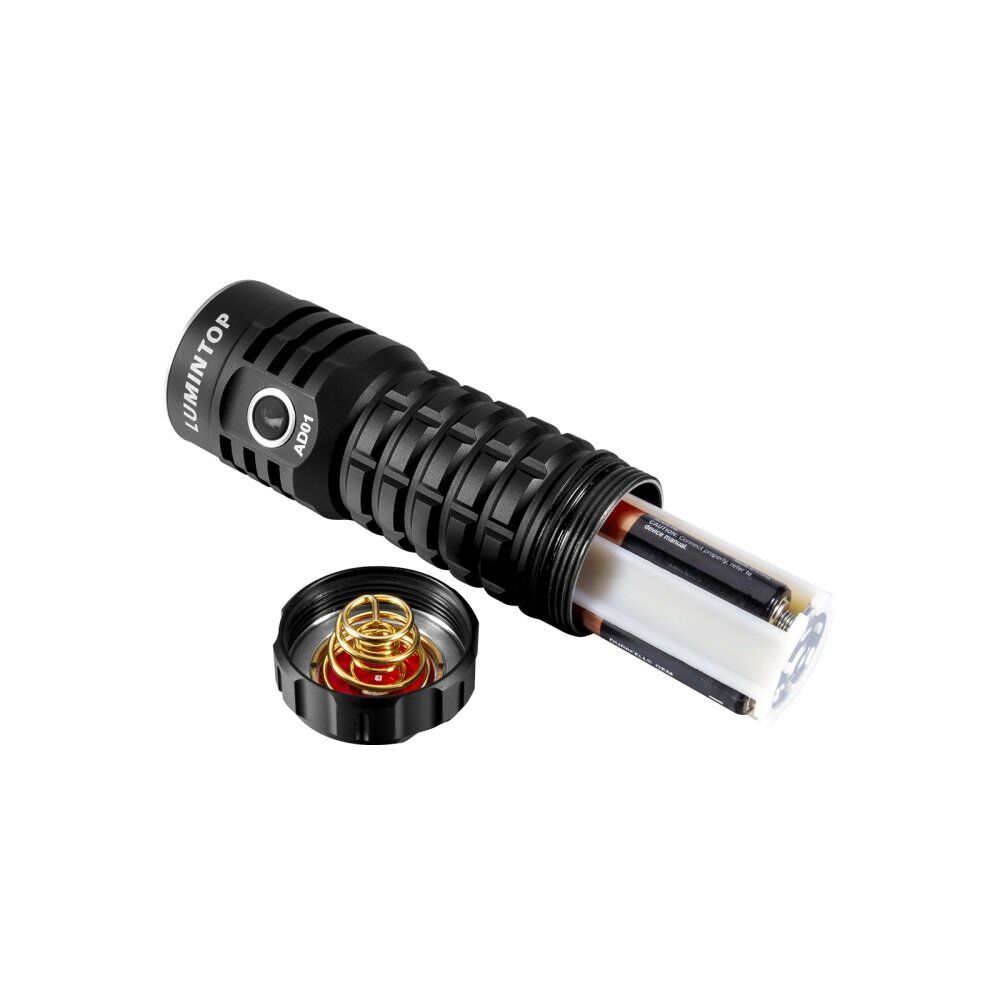

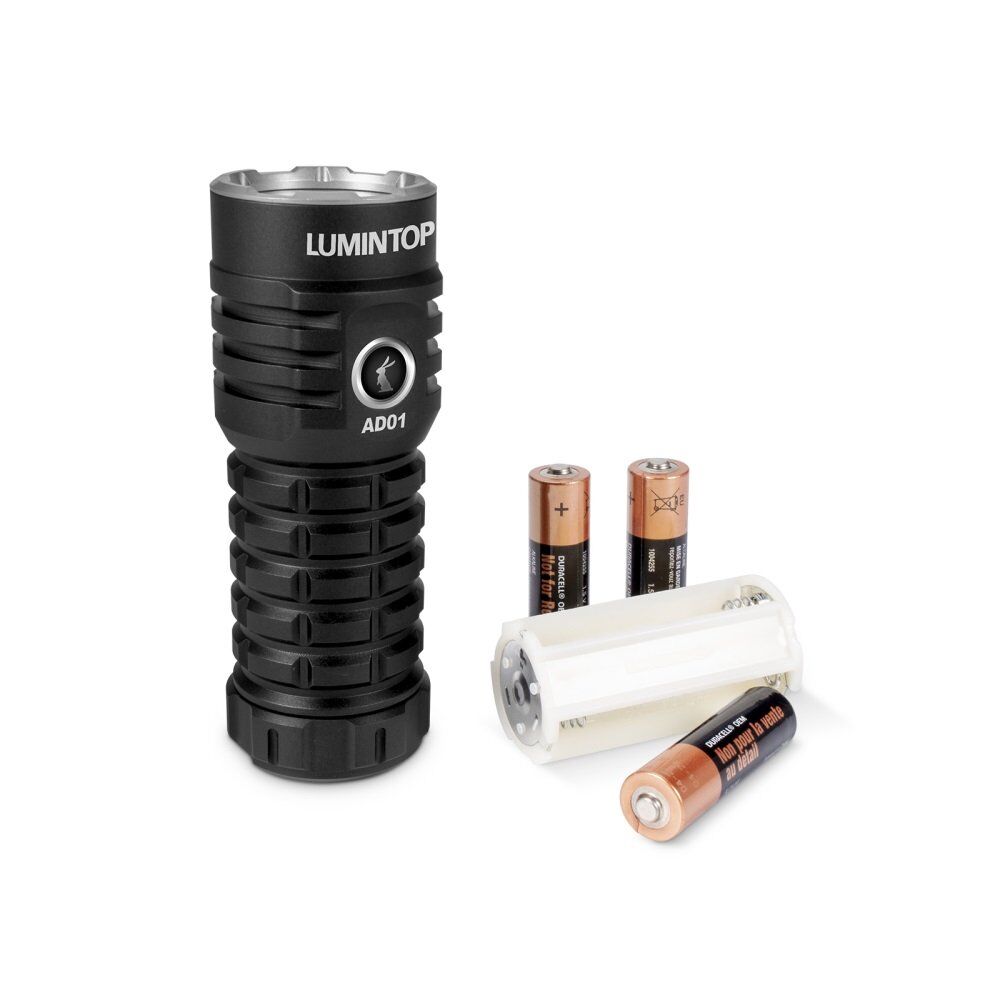

  • Compatible with 1X18650, 1XD cell, and 3XAA cells
  • Side switch for one-handed operation
  • A lock-out function is also provided
  • Compact in size easy to carry: 42*39*116mm
  • Net weight: ~165g (battery sleeve and carrier are excluded)
  • IPX-8 Waterproof

Specification

ANSI/NEMA FL1MoonlightLowMedHighTurboStrobe/SOS/Beacon
Output186501LM40LM400LM750LM1200LM750LM
3*AA Alkaline1LM40LM400LM750LM780LM750LM
3*AA Ni-MH1LM40LM400LM750LM950LMM750LM
D Cell1LM10LM50LM100LM165LM100LM
Runtime1865015D24H2H 30Min3Min+2H 15Min90S+2H/
3*AA Alkaline9D15H2H 10Min3Min+1H 55Min90S+1H 50Min/
3*AA Ni-MH9D15H1H 35Min3Min+1H 25Min90S+1H 20Min/
D Cell15D48H15H3H +8H50Min+8H/
Distance (Max)18650: 650m3* Alkaline AA: 510m
D cell:230m3* Ni-MH AA:550m
Intensity (Max)18650: 105625cd3* Alkaline AA: 65000cd
D cell: 13250cd3* Ni-MH AA: 75500cd
Impact Resistance1.5m
WaterproofIP68, underwater 2m
LEDOSRAM KW CULPM1.TG LED
Battery1 X 18650 Li-ion/ 1 X D cell/ 3 X AA (excluded)
Power18W (Max))
Size42*39*116mm
Net Weight~210g (battery excluded)

Download

AD01_Manual_230214
